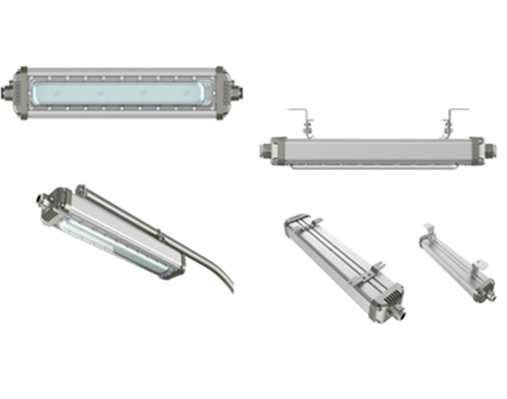

EXPLOSION PROOF LED LINEAR LIGHT
Model: AL-LEX12
![Explosion proof LED linear light](https://www.aerolight.uk/wp-content/uploads/2020/07/explosion-proof_light1.png)
PRODUCT APPLICATION
- Widely used in petroleum mining, oil refining, chemical industry, military industry, and another dangerous environment for general lighting and operational lighting;
- It could work in Zone 1 and Zone 2 of the explosive gas environment;
- It could work in Zone 21 and Zone 22 of flammable dust environments;
- It could work for T1-T6(T5) of temperature group;
- It could work for energy-saving renovation projects and maintenance & replacement for difficult places;
- It could work for places with high protection requirements and poor wet environments.
KEY FEATURES
- Electrical components: The light source uses first-line brand LED light-emitting chips, ultra-high light efficiency; average service life up to 100,000 hours, the power supply is processed with the latest wide voltage technology, with constant current output, short circuit, overvoltage protection, and other functions.
- Heat dissipation design: The radiator is extruded with an integrated profile, the structure is tight, and it has excellent heat conduction and heat dissipation performance.
- Optical lampshade: High-strength optical grade PC material integrated injection moulding, corrosion resistance and impact resistance, light transmittance can reach 95%~98%, light irradiation is even and soft, anti-glare.
- Protection and anti-corrosion: The surface of the lamp body radiator is anodized, the die-casting parts are treated with high-pressure electrostatic spraying, the screw fasteners are made of stainless steel, and the high-precision processing technology is combined with the characteristics of high anti-corrosion, high waterproof and high dust resistance. The lamps can work normally for a long time in various harsh environments.
PERFORMANCE CHARACTERISTICS
- Beam spread: 120°
- Light effect: 120lm/w
- Power factor: >0.95
- CCT: 3000K / 6500K
- CRI: >70Ra
- Warranty: 3 year (on request 5 years)
ELECTRICAL CHARACTERISTICS
- Light source: LED 2835
- Input voltage: 110-240VAC, DC24V
- Power: 20Watts / 40Watts / 60Watts
PHYSICAL CHARACTERISTICS
- Design degree of protection: IP66
- Anti-corrosion level: WF2
- Explosion proof grade: Ex IIC T6 Gb /Ex tD A21 IP66 T80℃
- Temperature range: -30°C to +50°C

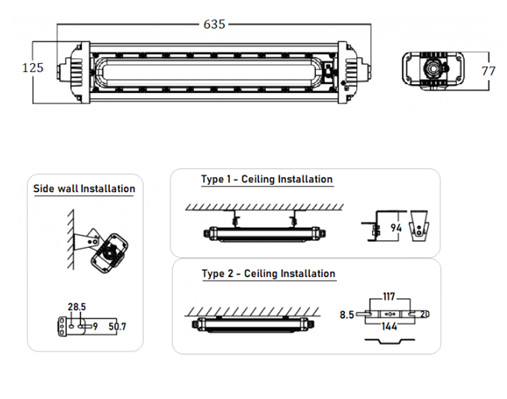

- Dimension: 635*125*77mm
- Weight: 3.0kg
