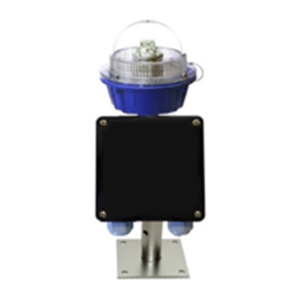

HELIPAD LIGHTS – ELEVATED PERIMETER LIGHTS FOR HELIPORT
![](https://www.aerolight.uk/wp-content/uploads/2023/04/ELVATED-PERIMETER-LIGHTS-FOR-HELIPORT-300x300.png)
- ICAO: Annex 14 Volume I – Aerodrome Design & Operations
- ICAO: Annex 14 Volume II – Heliports
- Doc. 9261 Heliport Manual
Our HELICO AEL heliport perimeter lights are used to mark the FATO and
touchdown and lift-off area (TLOF) for land based heliports. The good colour
contrast of the AEL helps the pilot to see the heliport, while approaching
and landing at night and/or in bad weather conditions.
Perimeter lights cannot be taller than 25cm and must be recessed in case
they are considered as an obstacle to proper take-off operations. The
elevated inset lights are provided with mounting baseplate.
The NVG and dimmable LEDs option is also available.
LUMINOUS | FATO/TLOF/AIMING POINT LIGHT |
Luminous source | Single Optic LED technology |
Colour | White/Green/Yellow/Blue |
Type | Steady Burning |
Intensity | >30CD (available dimmable) |
Lifetime | 100,000hours |
Input Voltage | 120VAC / 230VAC |
Power Consumption | 3W |
Horizontal Coverage | 360° |
Protection Class | IP66 |
Temperature | -30° C to +55° C |
Body Material | Powder coated die-cast aluminium |
Transparent Lens | Polycarbonate UV resistant |
Dimension | 254mm x 102mm x 76mm |
Weight | 2.3kg |
