HELIPAD LIGHTS – INSET PERIMETER LIGHTS FOR HELIPORT
- ICAO: Annex 14 Volume I – Aerodrome Design & Operations
- ICAO: Annex 14 Volume II – Heliports
- Doc. 9261 Heliport Manual

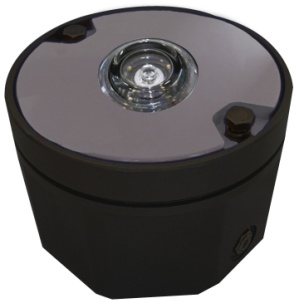

Our HELICO HP LED inset lights are used as visual indication for correct
and safe Helipad landing and take-off. They can be configured for different
purposes and with different colours.
Perimeter lights cannot be taller than 25cm and must be recessed in case
they are considered as an obstacle to proper take-off operations. The inset
lights are provided with shallow base.
The NVG and dimmable LEDs option is also available.
The full flush version is preferred for helipads where no thrusting
operations are required.
SCOPE OF APPLICATION
- Touch Down and Lift Off Areas – TLOF (ICAO/FAA)
- Final Approach and Take Off Areas – FATO (FAA)
- Flight Path Alignment Lights (ICAO)
- Final Approach and Take Off Areas FATO (ICAO)
- For the use as Aim Point Light (ICAO)
- For the use as Flight Path Alignment Guidance Lights (ICAO)
- Taxiway (ICAO)
LUMINOUS | TLOF PERIMETER – GREEN | FATO PERIMETER – WHITE |
Luminous source | Single Optic LED technology | Single Optic LED technology |
Colour | Green | White |
Type | Steady Burning | Steady Burning |
Intensity | >30CD (available dimmable) | >30CD (available dimmable) |
Lifetime | 100,000hours | 100,000hours |
Input Voltage | 120VAC / 230VAC | 120VAC / 230VAC |
Power Consumption | <8W | <8W |
Horizontal Coverage | 360° | 360° |
Protection Class | IP67 | IP67 |
Temperature | -30° C to +55° C | -30° C to +55° C |
Body Material | Powder coated cast aluminium | Powder coated cast aluminium |
Transparent Lens | Borosilicate Glass | Borosilicate Glass |
Dimension | 203mm(8 inch) x 127mm(5 inch) | 203mm(8 inch) x 127mm(5 inch) |
Weight | 4.8kg | 4.8kg |
