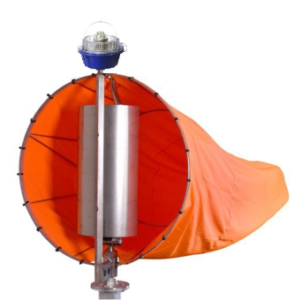

HELIPAD LIGHTS – LIGHTED WINDSOCK
![](https://www.aerolight.uk/wp-content/uploads/2023/04/HELIPAD-LIGHTS-–-LIGHTED-WINDSOCK-1-295x300.png)
- ICAO: Annex 14 Volume I – Aerodrome Design & Operations
- ICAO: Annex 14 Volume II – Heliports
- Doc. 9261 Heliport Manual

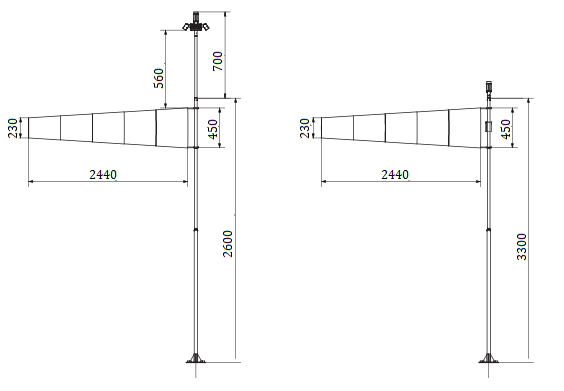

Wind Indicator Masts are available in 3.3m, 6.6m and 7.2m tall and can be customized on request: The 6.6m and 7.2m provided with tiltable mast.
With a windsock of diameter 45 and 90 cm in orange and red & white colour.
With an internal lighting system (inside the windsock only), or a complete illumination comprising the top-mast obstruction light.
Our windsock lightings and top-mast LIOL Low-Intensity Lights are working with LED Technology.
LUMINOUS | SPECIFICATIONS |
Mast height | 3.3m, 6.6m, 7.2m |
Mast | Stainless Steel powder coated (On request orange or red & white coated) |
Frame Material | Stainless steel |
Power Consumption | Externally lighted (44W), Internally lighted (24W) |
Windsock | Nylon fabric (1.2m and 2.4m long) |
Input Voltage | 90-240VAC |
Protection Class | IP66 |
Temperature | -30° C to +55° C |
Optional | Solar power supply (PV, Battery with GRP Box) |
![](https://www.aerolight.uk/wp-content/uploads/2023/04/Lighted-Windsock-–-Helipad-Lights.png)
