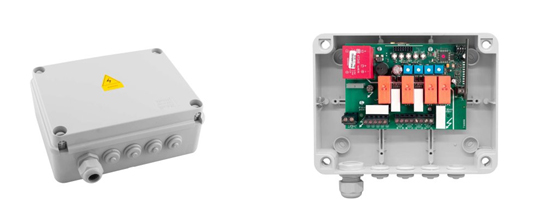

AIRCRAFT WARNING LIGHTS – JUNCTION BOX (JB)
  • Programming Options:
    • Option 1
      • Single Button On and Off
        • This creates an on and off from a single button on a wireless switch/remote
    • Option 2
      • Dual button On and Off
        • This assigns an On and Off to 2 separate buttons
    • Option 3
      • Timelag function
        • This only sends an ON signal, which is then switched off by a preset countdown timer
        • If programmed to a switch or remote, then the countdown will switch off when it reaches 0 seconds
  • Switches/Remotes
    • The keyfob and switch (sold separately) both have four buttons. Program the button of choice to link with a channel, that button will switch the channel’s circuit on/off. Additional switches and remotes can be added to a Junction Box as desired (16 max.).
  • General:
    • IP rating – 54
    • Detection Range – 200m
  • Electrical:
    • Amperage – 20A
    • Max. Amps/circuit – 5A
    • Minimum wattage per circuit – 1W
    • Voltage – 240V
  • Dimensions (mm):
    • Depth – 80
    • Height – 150
    • Width – 200
