AIRCRAFT WARNING LIGHTS – LOW INTENSITY
The Aerolight LIOL is Low Intensity Obstruction Light based on single LED
optic technology solution to the FAA L-810 style of steady burning lights. The

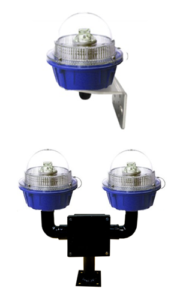

LIOL LED is currently available in both single and double configurations.
• FAA Type: L-810 Steady Burn Obstruction Light
• ICAO Type: Annex 14, Volume I – Chapter 6
Low Intensity Type B Obstacle Light
LIOL can be installed on any structures up to 45m in height.
The LED technology allows us to develop watertight (IP66) and very low power
consuming lights with a long lifetime (100,000 hours).
LIOL is provided with integral photocell for an automatic switch ON/OFF, and dry
contact for failure alarm.
Moreover, for a complete solution, Aerolight offers Monitoring System
Controller, Uninterruptible Power Supplies (UPS) and Solar Power Supplies.
PRODUCT APPLICATIONS
Low intensity beacons can be installed on structures up to 45 meters of height. For taller obstacles it is required to install Medium-Intensity Lights at the top and Low-Intensity Lights Type B at the intermediate level.
KEY FEATURES
- Long life LED light source
- Life hours > 10 years
- Body material cast aluminium
- Lens polycarbonate, UV resistant
- Extremely Low power consumption
- 3 years warranty
PERFORMANCE CHARACTERISTICS
- Horizontal beam spread 360°
- Vertical beam spread 10°
- Intensity >32.5 candela (ICAO Type B)
ELECTRICAL CHARACTERISTICS
- Input voltage: 96-265VAC, DC12V, DC24V
- Power consumption: <4W
- Overvoltage protection

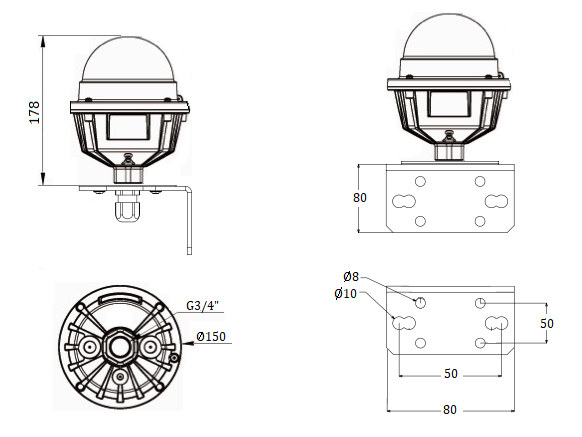

PHYSICAL CHARACTERISTICS
- Dimensions (L*W*H): see datasheet
- Weight: Single <1.5kg, Double <4.0kg
- Design degree of protection: IP66 (main + standby lamp)
- Temperature range: -30°C to +55°C
- Optional: Solar powered, Mounting bracket, Prewired junction box
SYSTEM CONTROL
- Integrated photocell and dry contact (on request)
- Design degree of protection: IP66
