AIRCRAFT WARNING LIGHTS – MEDIUM INTENSITY RED
- FAA Type: L-864 Medium Intensity Lighting
- ICAO Type: Annex 14, Volume I – Chapter 6 Medium Intensity Type A / Type B / Type C Obstacle Light
- Type B red flashing (2,000 candela in night mode)
- Type C red steady burning (2,000 candela in night mode)
MIOL is provided with integral photocell for an automatic switch ON/OFF, and
dry contact for failure alarm for stand-alone use.
Moreover, for a complete solution, Aerolight offers Monitoring System
Controller, Uninterruptible Power Supplies (UPS) and Solar Power Supplies
PRODUCT APPLICATIONS
Our Medium Intensity Lights can be installed on every obstacle between 45 and 150M of height (Pylons, Civil Engineering Structures, Buildings, Cranes, and Chimneys).
For obstacles that tall it is recommended to plan an illumination on various levels, with Medium Intensity Light at the top, and Low Intensity Light Type B at the intermediate level.
KEY FEATURES
- 5 years warranty
- OSRAM Multi LEDs technology
- Powder coated aluminium base
- GE PC Lens, UV stabilized
- Aluminium heatsink provides excellent thermal dissipation performance
- Extremely low power consumption
- Lightweight and easy to install
- Direct retrofit to traditional fixtures
- Compact design for dual operation
- Optional: IR LEDs, Visible with NVG Goggles
PERFORMANCE CHARACTERISTICS
- Horizontal beam spread: 360° omni-directional
- Vertical beam spread: 3° (minimum)
- Night mode (Red): 2,000 candela + 25%
- Steady Burning (Type C)
- Flashing 20FPM (Type B)
ELECTRICAL CHARACTERISTICS
- Input voltage: 96-265VAC, DC12V, DC24V
- Power consumption: <20 Watts
- Polarity reverse, overvoltage and short circuit protection
PHYSICAL CHARACTERISTICS

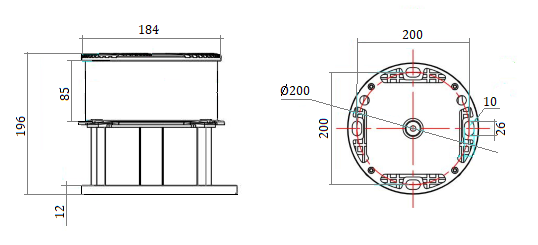

- Dimensions (L*W*H): see datasheet
- Weight: 6.0kg
- Design degree of protection: IP66
- Temperature range: -30°C to +55°C
SYSTEM CONTROL
- Stand-alone light with integrated photocell
- Integrated GPS based flash synchronization
- Stand-alone light with dry output (alarm line on request)
- Multiple beacon system with a SC (system controller)
- Photocell override switch
- Remote monitoring option (dry output)
- Wiring requirement: Existing wiring (3core x 12AWG can be used for retrofit application)
