AIRCRAFT WARNING LIGHTS – MEDIUM INTENSITY WHITE
- FAA Type: L-865 or L-864/L-865 Medium Intensity Lighting
- ICAO Type: Annex 14, Volume I – Chapter 6
Medium Intensity Type A / Type B / Type C Obstacle Light
MIOL White Aircraft Warning Lights range is composed of 3 versions:
- Type A white flashing (20,000 candela in day mode, and 2,000 candela in night mode)
- Type A&B white flashing (20,000 candela in day mode) and red flashing (2,000 candela in night mode)
- Type A&C white flashing (20,000 candela in day mode) and red steady burning (2,000 candela in night mode)
MIOL is provided with integral photocell for an automatic
switch ON/OFF, and dry contact for failure alarm for stand-alone use.
Moreover, for a complete solution, Aerolight offers Monitoring System
Controller, Uninterruptible Power Supplies (UPS) and Solar Power Supplies.
PRODUCT APPLICATION
Our Medium Intensity Lights can be installed on every obstacle between 45 and 150M of height (Pylons, Civil Engineering Structures, Buildings, Cranes, and Chimneys).
For obstacles that tall it is recommended to plan an illumination on various levels, with Medium Intensity Light at the top, and Low Intensity Light Type B at the intermediate level.
KEY FEATURES
- 5 years warranty
- OSRAM Multi LEDs technology
- Powder coated aluminium base
- Aluminium heatsink provides excellent thermal dissipation performance
- Extremely low power consumption
- Lightweight and easy to install
- Direct retrofit to traditional fixtures
- Compact design for dual operation
Optional: IR LEDs, Visible with NVG Goggles
PERFORMANCE CHARACTERISTICS
- Horizontal beam spread: 360° omni-directional
- Vertical beam spread: 3° (minimum)
- Day mode (White): 20,000 candela + 25%
- Night mode (White or Red): 2,000 candela + 25%
- Flash rate: 40FPM (day), 20FPM (night)
ELECTRICAL CHARACTERISTICS
- Input voltage: 96-265VAC, DC12V, DC24V
- Power consumption: Day 30 Watts, Night 20 Watts
- Polarity reverse, overvoltage and short circuit protection
PHYSICAL CHARACTERISTICS

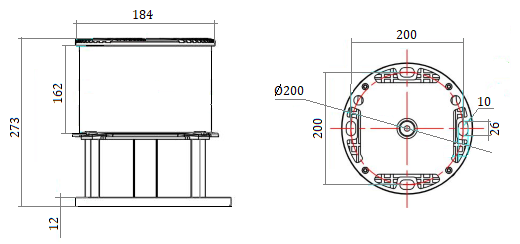

- Dimensions (L*W*H): see datasheet
- Weight: 6.0kg
- Design degree of protection: IP66
- Temperature range: -30°C to +55°C
SYSTEM CONTROL
- Stand-alone light with integrated photocell
- Integrated GPS based flash synchronization
- Stand-alone light with dry output (alarm line on request)
- Multiple beacon system with a SC (system controller)
- Photocell override switch
- Remote monitoring option (dry output)
- Wiring requirement: Existing wiring (3core x 12AWG can be used for retrofit application)
