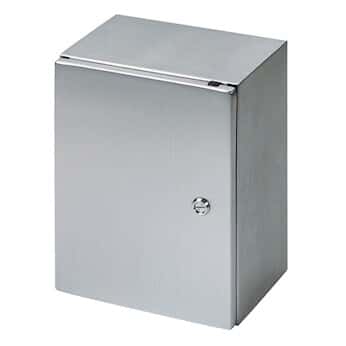

AIRCRAFT WARNING LIGHTS – SYSTEM PANEL (SP)
![](https://www.aerolight.uk/wp-content/uploads/2023/04/system-panel.jpg)
Key Features
- Classification: Safe Area
- Cost-efficient housing design
- Integrated Over Voltage Protection
- Connect up to 4 compatible tower lights (on request customized upto 8 lights)
- Simple cable connection for easy installation
- Supplied with EMC cable glands and blind plugs
- Two-year warranty
SPECIFICATIONS
- Material: GRP, Stainless Steel
- Enclosure: Steel with powder coated RAL7035
- Mounting: Wall mount
- Wide input voltage range 120-240VAC nominal, 50/60Hz
- Individual light monitoring status
- Remote monitoring output (dry output) for lights
- Flash: Synced via GPS in light or via controller
- Photocell override switch
- Design degree of protection: IP65
- Operating temperature range: -30°C to +55°C
- Dimension: 400mm x 300mm x 150mm
- Weight: 4.0kg
